DredCine 20 Build Kit

DredCine 20 premium cinematic 2" BetaFlight or INAV CineWhoop build kit with 3s or 4s motor options from RCInPower (3s - 8000kV) or AxisFlying (4s - 5500kv) excluding VTX/FPV Camera and propeller guards. This CineWhoop frame fits all current major FPV systems using camera TPU mounting on a vibration isolated camera mount plate (no camera TPU is included though STLs are provided via download). Fits GEPRC and other 2" propeller guards or PETG/PLA 3D printed propeller guards (STL provided).

Compatible with:

 - Most 25.5x25.5mm AIO Flight Controllers

 - All standard 20x20mm, 25.5x25.5mm, and 30.5x30.5mm (with adapter) analog FPV VTX

 - All standard 14mm, 19mm, and 20mm FPV Cameras

 - Walksnail 1S & 4K Kits (WS4K with 3D printed mount plate, not included)

 - Naked Caddx Vista

 - DJI O3 Flywoo Naked & DJI O3 original / full size

 - DJI O4 Lite & DJI O4 Pro

Kit contents:

==========

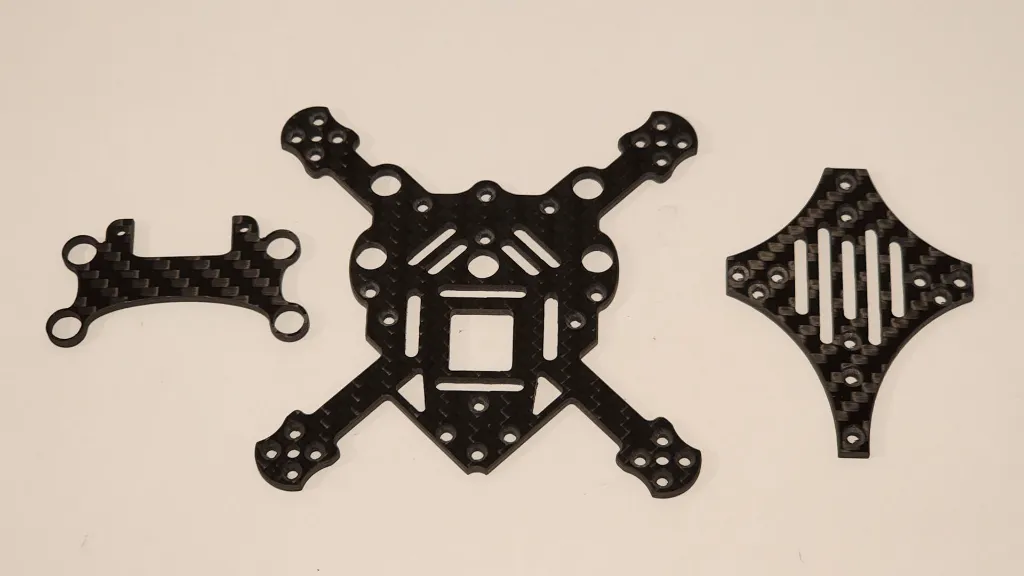

DredCine 20 Carbon Fiber Frame Plate Kit: 3 pieces

Battery strap

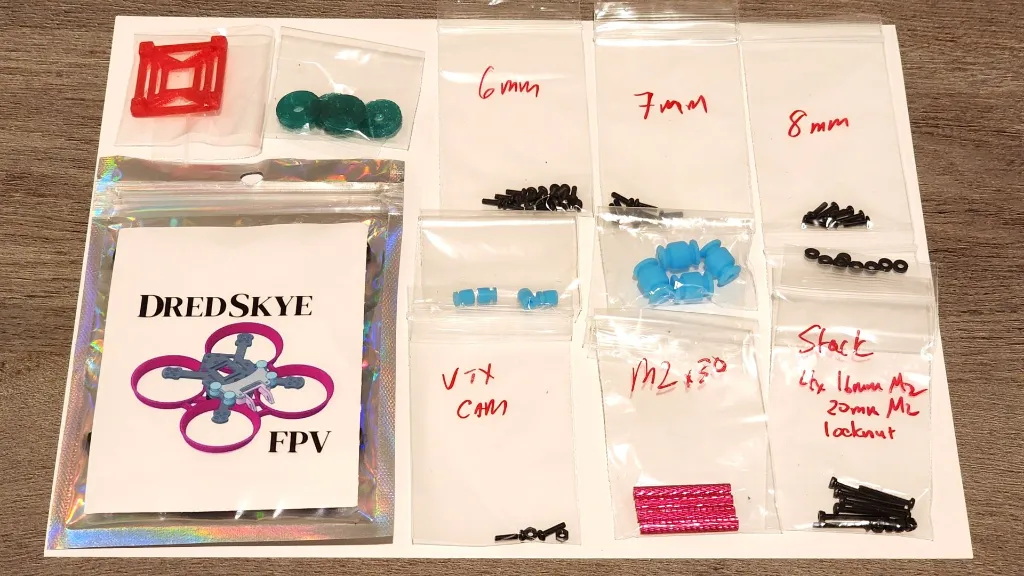

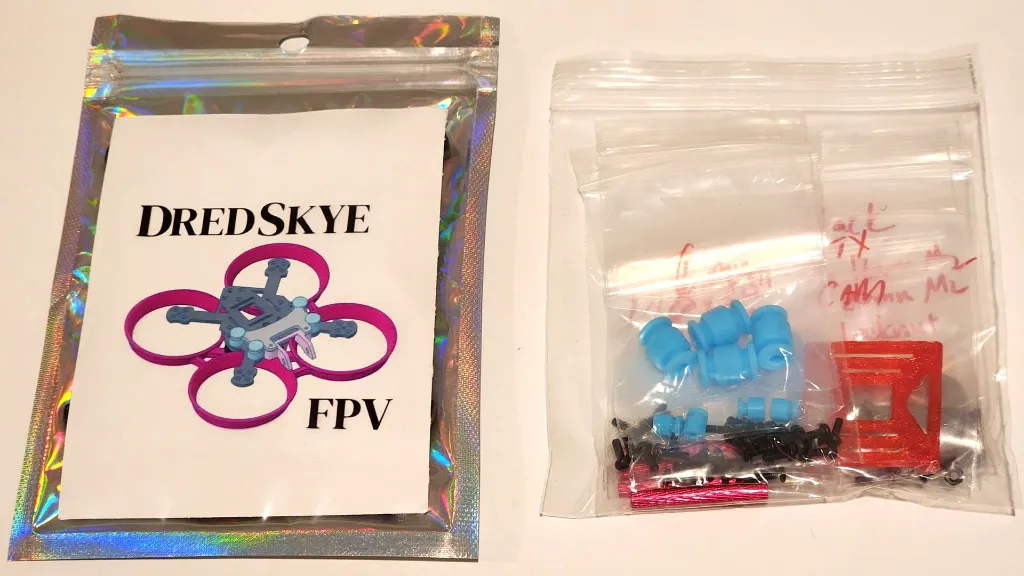

DredCine 20 Hardware Kit:

4x M2 Stack Gummy Flight Controller Soft Mount 6mm (Lt. Blue)

4x Anti Vibration Rubber Balls (Lt. Blue)

16x M2x6mm screw / motor mount

8x M2x7mm screw / prop mount

8x M2x8mm screw / standoff mount

4x Knurled Aluminum Standoff 30mm Pink

2x M2x8mm screw / vtx mount

2x M2 metal nut / vtx mount

8x M2 spacer 1mm

4x M2x16mm stack mount screw

4x M2x20mm stack mount screw

4x M2 stack mount nut

4x M2 locknut

1x PETG Receiver mount for stack

4x TPU Motor spacers (colors vary)

Electronics Kits:

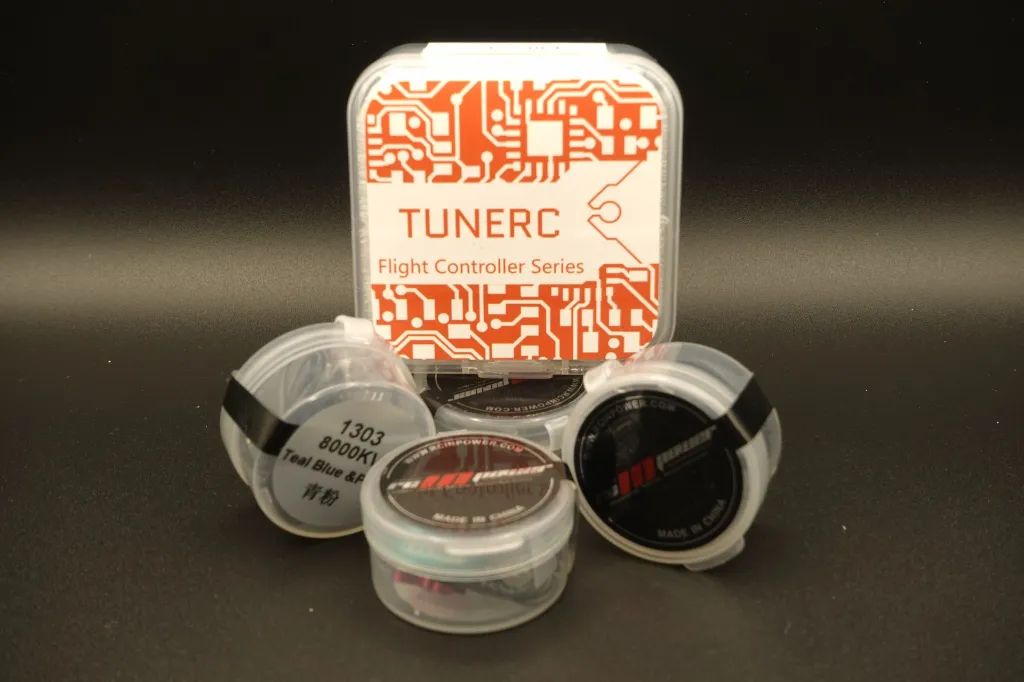

TuneRC Poly F405 2S-4S 20A AIO V1.2

3S Kit: 4x RcInPower GTSV3 1303 8000KV Teal --or--

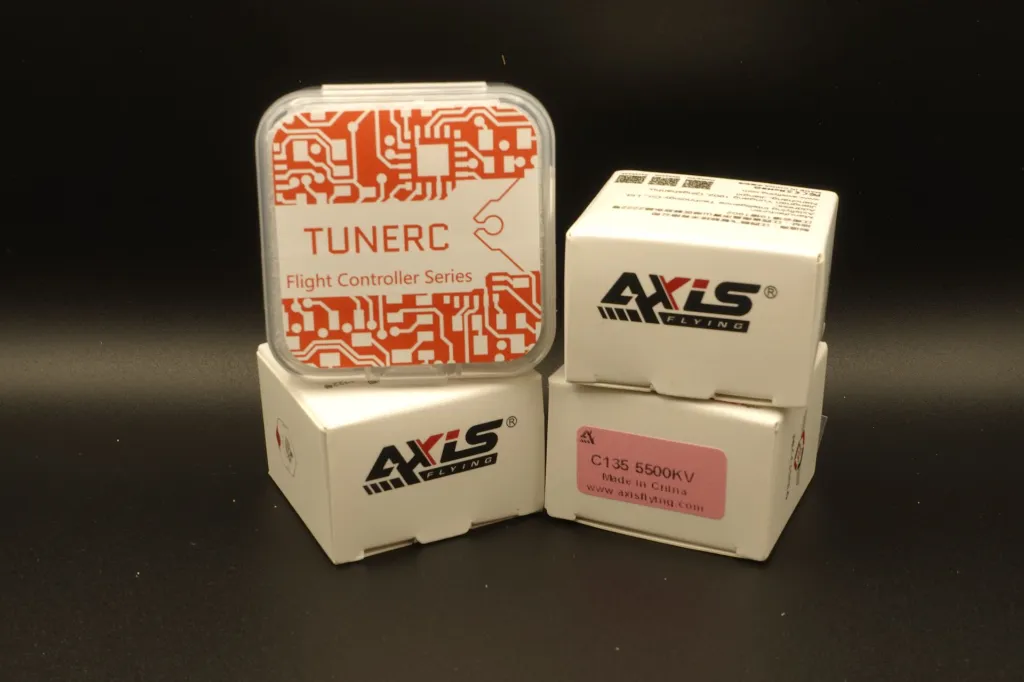

4S Kit: 4x AxisFlying C135 1303.5 5500KV

XT30 Cable w/35V 470uF Male

3D Printed parts available as STLS NO VTX INCLUDED // NO PROP GUARDS

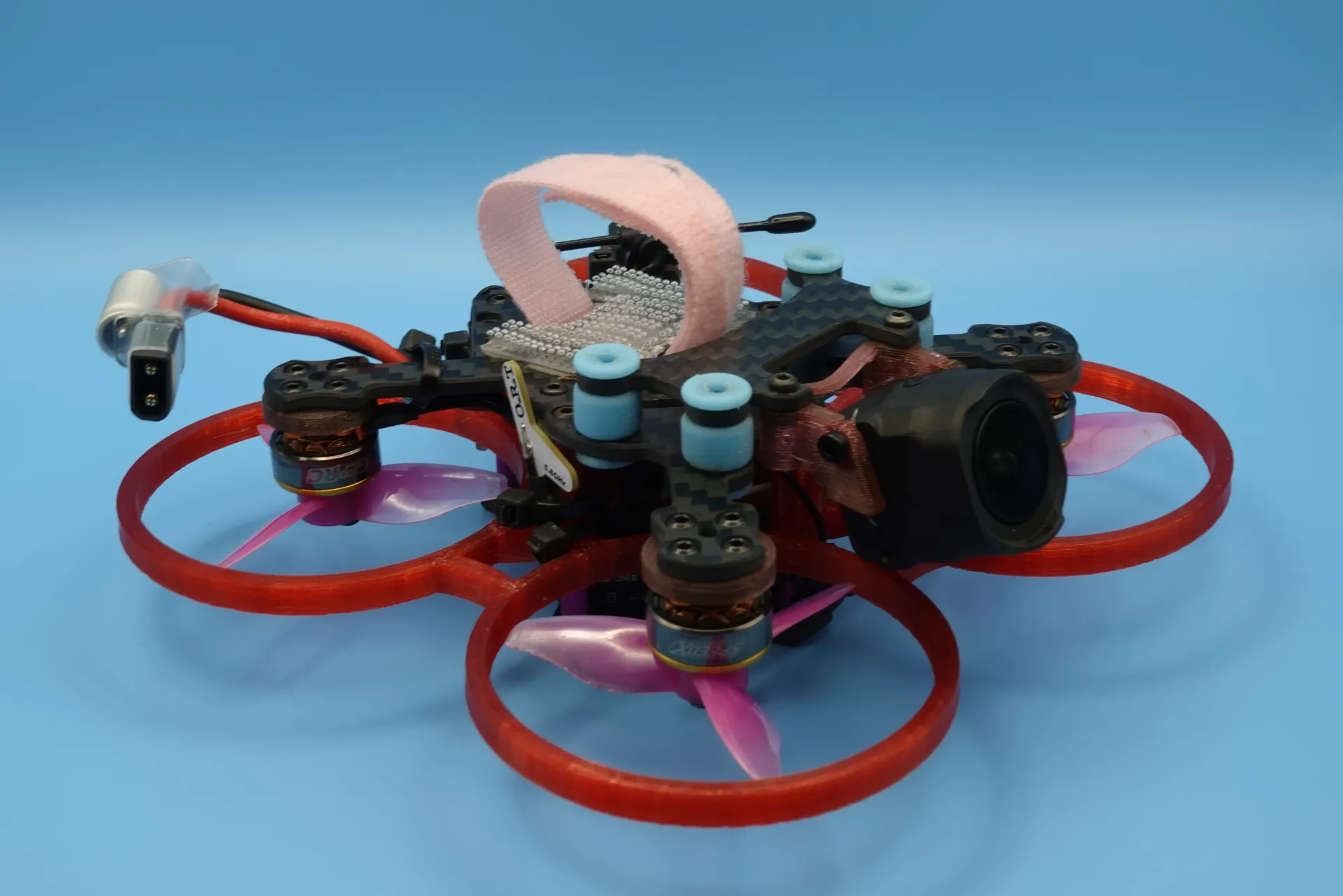

*Note: Full build photos are representative only. Camera, VTX, mounting TPU, and prop guards not included. Soldering required in order to assemble. No returns accepted of soldered components. Test flight controller prior to assembly. May require BetaFlight re-flash to enable HD OSD due to vendor installed version of BetaFlight 4.5 lacking this feature.
